Controlling Scope from lighting consoles with DMX and Art-Net

DMX (Digital Multiplex) is the industry standard for controlling stage lighting and effects. Scope supports the Art-Net protocol, allowing you to map DMX channels directly to pipeline parameters. If you are already running a lighting console for a show, you can control Scope’s real-time AI video from the same surface you use for lights.

For software-based control with named parameters, consider OSC or MIDI instead. DMX is best when you are already running a lighting desk or need to integrate Scope into an existing show control system.

Why DMX?

DMX is the standard protocol in professional live events. If you are running a lighting console (grandMA, Chamsys, ETC, etc.), DMX lets you control Scope from the same surface you are already using for your fixtures, turning AI-generated visuals into another element in your cue list.

	DMX / Art-Net	OSC	MIDI
Values	8-bit integers (0 to 255)	Floats, strings, ints	7-bit integers (0 to 127)
Transport	UDP (Art-Net) or 5-pin XLR	UDP	USB or 5-pin DIN
Addressing	Universe + Channel (numeric)	Named paths (`/scope/noise_scale`)	CC numbers
Setup	Requires explicit channel mapping	Direct parameter paths	Learn-based
Pro use	Standard in live events	Common in media servers	Common in studios

DMX gives you 512 channels per universe with 256 steps of resolution per channel. Unlike OSC and MIDI where the protocol includes parameter names, DMX requires you to configure which channel controls which parameter.

What you’ll need

Daydream Scope running (the Art-Net server starts automatically on UDP port 6454)
An Art-Net source: lighting console, QLC+, MagicQ, TouchDesigner, or similar
All devices on the same local network (or running on the same machine using localhost)

Enabling DMX in Scope

DMX input is disabled by default. You need to turn it on before Scope will listen for Art-Net packets.

Open DMX settings

Launch Scope and go to Settings (gear icon, top-right), then select the DMX tab.

Enable DMX input

Toggle the Enable switch to on. You should see a status indicator showing “Listening on UDP port 6454”.

Verify the port

The default Art-Net port is 6454. If that port is already in use by another application, Scope will automatically try 6455, 6456, and 6457 as fallbacks. You can also set a preferred port manually in the port input field.

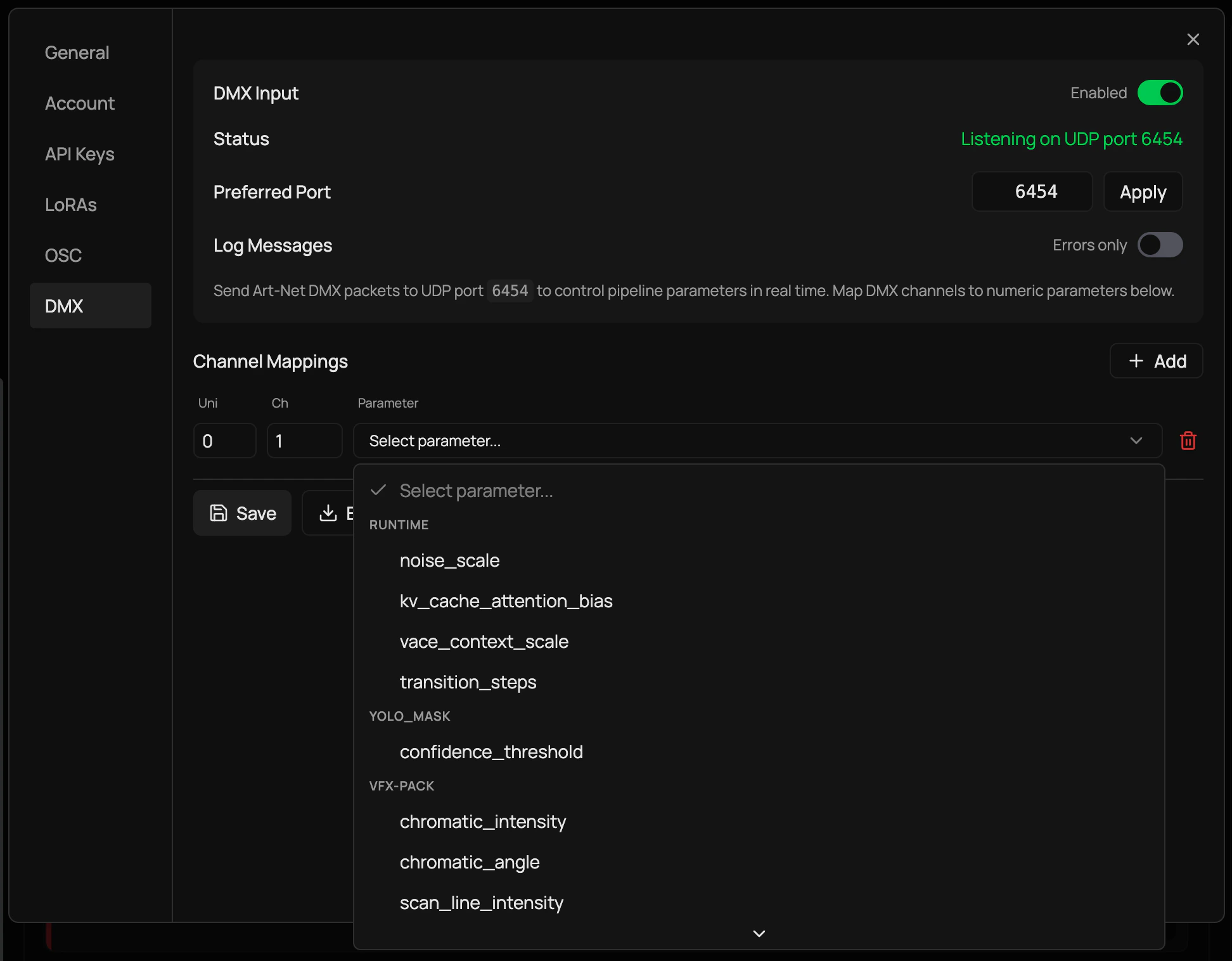

DMX settings tab showing the enable toggle, port status, and channel mappings grid

The DMX server binds to all network interfaces (0.0.0.0) by default, so it accepts Art-Net from any device on the network.

Configuring channel mappings

Unlike OSC (which uses named addresses) or MIDI (which uses learn mode), DMX channels are just numbers. You need to tell Scope what each channel should control.

Add a mapping

In the DMX settings tab, click Add Mapping. A new row appears in the mappings grid.

Set the universe and channel

Enter the Universe number (usually 0) and the Channel number (1 to 512).

Choose a parameter

Select a pipeline parameter from the dropdown. Parameters are grouped by pipeline, and only numeric types (float, integer) are available for mapping. The dropdown shows each parameter’s description and value range.

Save your mappings

Click Save to persist your configuration. Mappings are stored at ~/.daydream-scope/dmx-config.json and survive server restarts.

Test

Send a DMX value on that channel from your console. The parameter should update in real-time.

DMX values (0 to 255) are automatically scaled to each parameter’s min/max range. For example, if a parameter ranges from 0.0 to 1.0, a DMX value of 128 maps to approximately 0.5.

DMX channels are 1-indexed (1 to 512) following the industry convention, even though Art-Net packets use 0-indexed channels internally. Scope handles this conversion for you.

Import and export

The DMX settings tab includes Export and Import buttons for your channel mapping configuration:

Export downloads your current mappings as a scope-dmx-config.json file
Import loads mappings from a previously exported JSON file

Export your configuration before making changes to a show. This is especially helpful when moving between venues or sharing setups with other operators.

Connecting your Art-Net source

Lighting consoles (grandMA, Chamsys, ETC)

Most professional consoles have Art-Net output built in:

Enable Art-Net output

In your console’s network settings, enable Art-Net output.

Set the destination

Set the destination IP to the machine running Scope, or use 255.255.255.255 for broadcast.

Map your channels

Map fixtures or channels to the same universe and channel numbers you configured in Scope. Treat each Scope parameter like a fixture attribute.

QLC+ (free lighting software)

Create an Art-Net output

Go to Inputs/Outputs and add an Art-Net output plugin.

Configure the universe

Set the output universe to match your Scope mappings.

Control channels

Use the Simple Desk to control channels directly, or create fixtures for a more structured setup.

TouchDesigner

Create a DMX Out CHOP

Add a DMX Out CHOP to your network.

Configure Art-Net output

Set Network Protocol to “Art-Net”, Network Address to the Scope machine’s IP, and Universe to match your mappings.

Wire channel data

Connect a CHOP with channel data to the DMX Out. Each sample value (0 to 1) maps to DMX values (0 to 255).

Python (stupidArtnet)

For scripted or automated control, you can send Art-Net packets from Python:

from stupidArtnet import StupidArtnet

# Connect to Scope (same machine)
artnet = StupidArtnet("127.0.0.1", 0)  # Universe 0
artnet.start()

# Build a DMX packet (512 channels)
packet = [0] * 512

# Set channel 1 to 50% (128/255)
packet[0] = 128  # Channel 1 (0-indexed in code, 1-indexed in Scope UI)

artnet.set(packet)
artnet.show()

Planning your channel layout

A typical mapping strategy for a show:

Channel	Parameter	Range
1	`noise_scale`	0.0 to 1.0
2	`transition_steps`	0 to 100
3	`guidance_scale`	1.0 to 10.0
4	`vace_context_scale`	0.0 to 1.0

Keep a channel map document alongside your show file. Future you, or the next operator, will thank you.

Multi-universe support

Scope accepts Art-Net on any universe. When creating mappings, specify the universe number to separate concerns:

Universe 0, Channel 1 maps to one parameter
Universe 1, Channel 1 maps to a different parameter

This lets you integrate Scope into larger Art-Net networks without channel conflicts. The UI supports universe numbers from 0 to 32767.

Troubleshooting

No response from Scope

Check that the DMX status in Settings shows “Listening on UDP port 6454”
Verify your Art-Net source is targeting the correct IP and port
Check that you have created a mapping for the channel you are sending
Ensure your firewall allows UDP on port 6454

Values not scaling correctly

Check your parameter’s min/max range in the mapping dropdown. DMX 0 maps to min, DMX 255 maps to max. If the behavior seems inverted, swap your min and max values.

Latency or jitter

Art-Net over UDP is fast but does not guarantee delivery. On busy networks or Wi-Fi, you may see occasional drops. For mission-critical shows, use a dedicated Art-Net network or wired connections.

Port 6454 already in use

Another application is using the Art-Net port. Close other Art-Net receivers, or let Scope fall back to ports 6455 through 6457. You can also set a preferred port manually in the settings.

Works locally but not across the network

Verify both machines are on the same subnet
Replace localhost with the actual LAN IP of the Scope machine
Check that no firewall is blocking UDP on port 6454
Try the broadcast address 255.255.255.255 if unicast is not working
